Galois Viewer
viewer 是一個 Electron 實做。server 則是一個薄封裝,實作了簡單的佇列,並且會從 Python 那邊的實作 (build.py) spawn 一個 process。

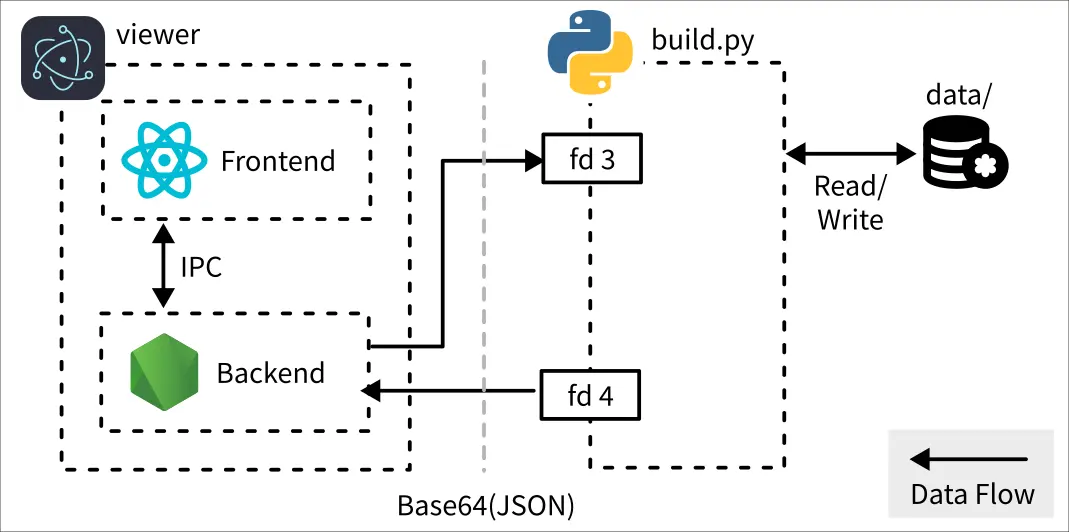

從資料流的角度則如下圖所示:

spawn 出來的 process 是透過 FD (File descriptor) 3 和 4 跟 Electron 的後端※溝通。而兩者傳輸的資料格式則是使用 base64 編碼過得 JSON,而 JSON 的 sechma 可以在 biomes-aql-utils 裡面找到。
info
※更精確的說法是 main process,與之相對的瀏覽器端則是 renderer process,這裡選擇使用一個對 Electron 不熟悉的人應該也比較好理解的用詞。
Error: spawn /bin/sh ENOENT at Process.ChildProcess
目前遇到的主要障礙是以下錯誤訊息:
Error: A JavaScript error occurred in the main process
Uncaught Exception: Error: spawn /bin/sh ENOENT at Process.ChildProcess._handle.onexit (node:internal/child_process:282:19) at onErrorNT (node:internal/child_process:477:16) at processTicksAndRejections (node:internal/process/task_queues:83:21)
Uncaught Exception: Error: write EPIPE at afterWriteDispatched (node:internal/stream_base_commons:164:15) at writeGeneric (node:internal/stream_base_commons:155:3) at Socket._writeGeneric (node:net:780:11) at Socket._write (node:net:792:8) at writeOrBuffer (node:internal/streams/writable:389:12) at _write (node:internal/streams/writable:330:10) at Socket.Writable._write (node:internal/streams/writable:334:10) at BatchAssetServer.send (/home/flyskypie/Desktop/2025-10-22_biomes-game_research/2025-11-16_galois-extract/galois-fe-investigation/js/server/dist/server.cjs:93:30) at /home/flyskypie/Desktop/2025-10-22_biomes-game_research/2025-11-16_galois-extract/galois-fe-investigation/js/server/dist/server.cjs:110:9 at processTicksAndRejections (node:internal/process/task_queues:96:5)
目前盲猜是因為 spawn 發生在 Electron 內,在 Linux 上應屬於某種沙盒環境,因此「有 shell 的 spawn」沒辦法正常運作。
我不是很想處理 Electron 打包機制與虛擬目錄引入的複雜性,之後應該會把架構改寫成單純的 Web 前端跟 HTTP API 伺服器。
