Homelab 資料遷移筆記：GPU 篇

March 7, 2026

Wei Ji

閃亮症候群工程屍

前情提要

我完成了 1.3TB 的資料遷移，但是 Jellyfin 服務依然有東西還沒完成配置。

關於資料遷移的細節請見前一篇文樁：

Homelab 資料遷移筆記 (2026-03-05)

GPU 與硬體加速

在遷移前的配置中有這麼一段設定：

services:
  jellyfin-server:
    image: jellyfin/jellyfin:10
    devices:
      - /dev/dri/:/dev/dri/

原因是當瀏覽器不支援直接播放原本儲存的檔案格式時，Jellyfin 需要先編碼再串流給瀏覽器，而這個過程如果不透過硬體加速會非常慢，因此它不像一般的雲端程式只要 CPU 跟 RAM 資源就能運作，還需要訪問 GPU 資源。

然後在 K8s 內實現這件事稍微有點複雜，因為在 K8s 的世界，永遠要考慮多節點情況，而多節點代表著：

節點上不見得有 GPU
節點上有 GPU 但是硬體規格可能是 Intel, AMD, nvidia...
不同硬體的驅動程式與實做不盡相同。

K8s 的高度抽象化固然支援處理這樣的問題，不過它不是開箱即用的，至少對於自己架的 K8s 來說不是。

解決方案

廢話少說，先說結論，背景知識等等再補，以下是整個過程大致上需要的步驟：

安裝 NFD (Node Feature Discovery)

helm install \
-n node-feature-discovery \
--create-namespace \
nfd oci://registry.k8s.io/nfd/charts/node-feature-discovery \
--version 0.18.3

安裝 cert-manager

helm install \
  cert-manager oci://quay.io/jetstack/charts/cert-manager \
  --version v1.19.4 \
  --namespace cert-manager \
  --create-namespace \
  --set crds.enabled=true

安裝 Intel 的 device-plugin-operator

helm install device-plugin-operator intel/intel-device-plugins-operator \
    --namespace intel-device-plugins-gpu \
    --create-namespace \
    --version 0.35.0

安裝 Intel 的 gpu-device-plugin

helm install gpu-device-plugin intel/intel-device-plugins-gpu \
    --namespace intel-device-plugins-gpu \
    --create-namespace \
    --version 0.35.0

使用 resources 標籤

    spec:
      containers:
        - image: docker.io/jellyfin/jellyfin:10
          resources:
            requests:
              gpu.intel.com/i915: "1"
            limits:
              gpu.intel.com/i915: "1"

requests 是要求最小裝置數量，limits 是聲明最大的資源用量。

整個安裝過程參考網路上的兩篇文章¹²。

K8s Operator

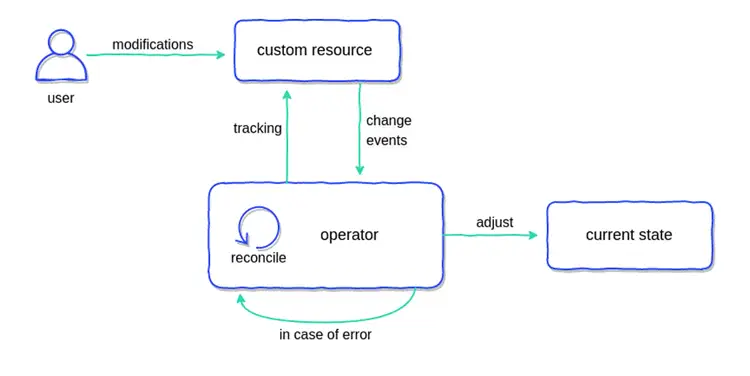

K8s Operator 本質上是一層聲明式與指令式的橋樑，目的是讓運維人員透過聲明式組態來操作經過封裝的指令式實做。

Operator 的運作方式大致為：程式觀察聲明式宣告的某種組態或資源，對 K8s 進行操作試圖使實際狀態與聲明狀態同步。換言之，當 K8s 發生某種變化，如：服務異常、失效，Operator 也會操作 K8s 試圖使其回到原本符合聲明的狀態。

info

本段落的圖片出自：

Kubernetes Operators Explained

類似的行為可以從 K8s 原本的設計就觀察到：

使用者聲明 Deployment 資源，K8s 再配置對應的 Pod，如果你手動把 Pod 刪除，K8s 會試著把 Pod 補回去。

K8s Device Plugin

K8s Device Plugin 的基本概念如下：

kubelet 暴露了 Unix Socket 供其他人連線。
第三方程式能夠透過這個 Socket 註冊包含 GPU 在內的各種裝置。
每個 K8s Worker Node 上有 kubelet。
K8s 暴露了一種操作方式 DaemonSet，它能在 K8s Cluster 內的每一個 Node 配置 Pod。
K8s Device Plugin 能夠透過 DaemonSet，佈署特定裝置的橋接器，當裝置存在就向 K8s 註冊裝置。
如此一來服務就能佈署到特定符合裝置條件的節點並使用該裝置。

NFD (Node Feature Discovery)

https://github.com/kubernetes-sigs/node-feature-discovery
- 1k ⭐

安裝前的資訊：

kubectl get nodes -o json

$ kubectl get nodes -o json | \
jq '.items[] | {name: .metadata.name, labels: .metadata.labels}'
{
  "name": "arachne-node-delta",
  "labels": {
    "beta.kubernetes.io/arch": "amd64",
    "beta.kubernetes.io/instance-type": "k3s",
    "beta.kubernetes.io/os": "linux",
    "kubernetes.io/arch": "amd64",
    "kubernetes.io/hostname": "arachne-node-delta",
    "kubernetes.io/os": "linux",
    "node-role.kubernetes.io/control-plane": "true",
    "node-role.kubernetes.io/master": "true",
    "node.kubernetes.io/instance-type": "k3s"
  }
}

安裝後的資訊：

kubectl get nodes -o json

kubectl get nodes -o json | jq '.items[] | {name: .metadata.name, labels: .metadata.labels}'
{
  "name": "arachne-node-delta",
  "labels": {
    "beta.kubernetes.io/arch": "amd64",
    "beta.kubernetes.io/instance-type": "k3s",
    "beta.kubernetes.io/os": "linux",
    "feature.node.kubernetes.io/cpu-cpuid.ADX": "true",
    "feature.node.kubernetes.io/cpu-cpuid.AESNI": "true",
    "feature.node.kubernetes.io/cpu-cpuid.AVX": "true",
    "feature.node.kubernetes.io/cpu-cpuid.AVX2": "true",
    "feature.node.kubernetes.io/cpu-cpuid.AVXVNNI": "true",
    "feature.node.kubernetes.io/cpu-cpuid.BHI_CTRL": "true",
    "feature.node.kubernetes.io/cpu-cpuid.CETIBT": "true",
    "feature.node.kubernetes.io/cpu-cpuid.CETSS": "true",
    "feature.node.kubernetes.io/cpu-cpuid.CMPXCHG8": "true",
    "feature.node.kubernetes.io/cpu-cpuid.FLUSH_L1D": "true",
    "feature.node.kubernetes.io/cpu-cpuid.FMA3": "true",
    "feature.node.kubernetes.io/cpu-cpuid.FSRM": "true",
    "feature.node.kubernetes.io/cpu-cpuid.FXSR": "true",
    "feature.node.kubernetes.io/cpu-cpuid.FXSROPT": "true",
    "feature.node.kubernetes.io/cpu-cpuid.GFNI": "true",
    "feature.node.kubernetes.io/cpu-cpuid.HRESET": "true",
    "feature.node.kubernetes.io/cpu-cpuid.HYBRID_CPU": "true",
    "feature.node.kubernetes.io/cpu-cpuid.IA32_ARCH_CAP": "true",
    "feature.node.kubernetes.io/cpu-cpuid.IA32_CORE_CAP": "true",
    "feature.node.kubernetes.io/cpu-cpuid.IBPB": "true",
    "feature.node.kubernetes.io/cpu-cpuid.IDPRED_CTRL": "true",
    "feature.node.kubernetes.io/cpu-cpuid.LAHF": "true",
    "feature.node.kubernetes.io/cpu-cpuid.MD_CLEAR": "true",
    "feature.node.kubernetes.io/cpu-cpuid.MOVBE": "true",
    "feature.node.kubernetes.io/cpu-cpuid.MOVDIR64B": "true",
    "feature.node.kubernetes.io/cpu-cpuid.MOVDIRI": "true",
    "feature.node.kubernetes.io/cpu-cpuid.OSXSAVE": "true",
    "feature.node.kubernetes.io/cpu-cpuid.PMU_FIXEDCOUNTER_CYCLES": "true",
    "feature.node.kubernetes.io/cpu-cpuid.PMU_FIXEDCOUNTER_INSTRUCTIONS": "true",
    "feature.node.kubernetes.io/cpu-cpuid.PMU_FIXEDCOUNTER_REFCYCLES": "true",
    "feature.node.kubernetes.io/cpu-cpuid.PSFD": "true",
    "feature.node.kubernetes.io/cpu-cpuid.RRSBA_CTRL": "true",
    "feature.node.kubernetes.io/cpu-cpuid.SERIALIZE": "true",
    "feature.node.kubernetes.io/cpu-cpuid.SHA": "true",
    "feature.node.kubernetes.io/cpu-cpuid.SPEC_CTRL_SSBD": "true",
    "feature.node.kubernetes.io/cpu-cpuid.STIBP": "true",
    "feature.node.kubernetes.io/cpu-cpuid.STOSB_SHORT": "true",
    "feature.node.kubernetes.io/cpu-cpuid.SYSCALL": "true",
    "feature.node.kubernetes.io/cpu-cpuid.SYSEE": "true",
    "feature.node.kubernetes.io/cpu-cpuid.VAES": "true",
    "feature.node.kubernetes.io/cpu-cpuid.VMX": "true",
    "feature.node.kubernetes.io/cpu-cpuid.VPCLMULQDQ": "true",
    "feature.node.kubernetes.io/cpu-cpuid.WAITPKG": "true",
    "feature.node.kubernetes.io/cpu-cpuid.X87": "true",
    "feature.node.kubernetes.io/cpu-cpuid.XGETBV1": "true",
    "feature.node.kubernetes.io/cpu-cpuid.XSAVE": "true",
    "feature.node.kubernetes.io/cpu-cpuid.XSAVEC": "true",
    "feature.node.kubernetes.io/cpu-cpuid.XSAVEOPT": "true",
    "feature.node.kubernetes.io/cpu-cpuid.XSAVES": "true",
    "feature.node.kubernetes.io/cpu-cstate.enabled": "true",
    "feature.node.kubernetes.io/cpu-hardware_multithreading": "true",
    "feature.node.kubernetes.io/cpu-model.family": "6",
    "feature.node.kubernetes.io/cpu-model.id": "186",
    "feature.node.kubernetes.io/cpu-model.vendor_id": "Intel",
    "feature.node.kubernetes.io/cpu-pstate.scaling_governor": "powersave",
    "feature.node.kubernetes.io/cpu-pstate.status": "active",
    "feature.node.kubernetes.io/cpu-pstate.turbo": "true",
    "feature.node.kubernetes.io/kernel-config.NO_HZ": "true",
    "feature.node.kubernetes.io/kernel-config.NO_HZ_FULL": "true",
    "feature.node.kubernetes.io/kernel-version.full": "6.8.0-101-generic",
    "feature.node.kubernetes.io/kernel-version.major": "6",
    "feature.node.kubernetes.io/kernel-version.minor": "8",
    "feature.node.kubernetes.io/kernel-version.revision": "0",
    "feature.node.kubernetes.io/memory-swap": "true",
    "feature.node.kubernetes.io/pci-0300_8086.present": "true",
    "feature.node.kubernetes.io/pci-0300_8086.sriov.capable": "true",
    "feature.node.kubernetes.io/storage-nonrotationaldisk": "true",
    "feature.node.kubernetes.io/system-os_release.ID": "ubuntu",
    "feature.node.kubernetes.io/system-os_release.VERSION_ID": "24.04",
    "feature.node.kubernetes.io/system-os_release.VERSION_ID.major": "24",
    "feature.node.kubernetes.io/system-os_release.VERSION_ID.minor": "04",
    "feature.node.kubernetes.io/usb-ef_27c6_609c.present": "true",
    "feature.node.kubernetes.io/usb-ff_0bda_8156.present": "true",
    "kubernetes.io/arch": "amd64",
    "kubernetes.io/hostname": "arachne-node-delta",
    "kubernetes.io/os": "linux",
    "node-role.kubernetes.io/control-plane": "true",
    "node-role.kubernetes.io/master": "true",
    "node.kubernetes.io/instance-type": "k3s"
  }
}

故障排除

安裝過程有遭遇一點問題：

$ kubectl logs pod/intel-gpu-plugin-gpudeviceplugin-sample-79cwr -n intel-device-plugins-gpu
I0306 14:06:45.387882       1 gpu_plugin.go:843] GPU device plugin started with none preferred allocation policy
I0306 14:06:45.388177       1 gpu_plugin.go:530] GPU (i915/xe) resource share count = 1
I0306 14:06:45.442369       1 gpu_plugin.go:548] GPU scan update: 0->1 'i915_monitoring' resources found
I0306 14:06:45.442389       1 gpu_plugin.go:548] GPU scan update: 0->1 'i915' resources found
I0306 14:06:46.444272       1 server.go:288] Start server for i915_monitoring at: /var/lib/kubelet/device-plugins/gpu.intel.com-i915_monitoring.sock
I0306 14:06:46.444396       1 server.go:288] Start server for i915 at: /var/lib/kubelet/device-plugins/gpu.intel.com-i915.sock
I0306 14:06:46.844746       1 server.go:306] Device plugin for i915_monitoring registered
I0306 14:06:46.844752       1 server.go:306] Device plugin for i915 registered
E0306 14:06:46.844852       1 manager.go:146] Failed to serve gpu.intel.com/i915_monitoring: too many open files
Failed to create watcher for /var/lib/kubelet/device-plugins/gpu.intel.com-i915_monitoring.sock
github.com/intel/intel-device-plugins-for-kubernetes/pkg/deviceplugin.watchFile
	github.com/intel/intel-device-plugins-for-kubernetes/pkg/deviceplugin/server.go:328
github.com/intel/intel-device-plugins-for-kubernetes/pkg/deviceplugin.(*server).setupAndServe
	github.com/intel/intel-device-plugins-for-kubernetes/pkg/deviceplugin/server.go:310
github.com/intel/intel-device-plugins-for-kubernetes/pkg/deviceplugin.(*server).Serve
	github.com/intel/intel-device-plugins-for-kubernetes/pkg/deviceplugin/server.go:226
github.com/intel/intel-device-plugins-for-kubernetes/pkg/deviceplugin.(*Manager).handleUpdate.func1
	github.com/intel/intel-device-plugins-for-kubernetes/pkg/deviceplugin/manager.go:144
runtime.goexit
	runtime/asm_amd64.s:1693

解決方法：

# 編輯檔案
sudo nano /etc/sysctl.conf

# 加入以內容
# fs.inotify.max_user_instances = 256

sudo sysctl -p

Intel GPU acceleration on Kubernetes – Jonathan Gazeley. Retrieved 2026-03-10, from https://jonathangazeley.com/2025/02/11/intel-gpu-acceleration-on-kubernetes/ ↩
Plex on Kubernetes with intel iGPU passthrough - Small how to : r/selfhosted. Retrieved 2026-03-10, from https://www.reddit.com/r/selfhosted/comments/121vb07/plex_on_kubernetes_with_intel_igpu_passthrough/ ↩
